Changes in respiration of the mitochondrial fraction of brain homogenates in rats with stepwise incomplete cerebral ischemia

Year - Volume - Issue
Authors
Elizaveta I. Bon, NataliyaYe. Maksimovich, Iosif K. Dremza, Mariya A. Lychkovskaya, Iya N. Burak
Article type
Abstract
Objective: to conduct a comparative analysis of mitochondrial respiration in brain homogenates of rats with stepwise incomplete cerebral ischemia (SICI) with varying duration between ligations of both common carotid arteries (CCA).
Material and methods. The experiments were performed on 24 male mongrel white rats weighing 260±20 g. All rats were distributed among three subgroups. Cerebral ischemia was simulated under intravenous thiopental anesthesia (40-50 mg/kg). The control group (n=6) comprised sham-operated rats of similar gender and weight. To study mitochondrial respiration, the brain was extracted in the cold environment (0-4 °C), dried with filter paper, weighed and homogenized sensu the modified technique in an isolation medium containing 0.32 M sucrose, 10 mM Tris-HCl, 1 mM EDTA, pH of 7.4 (in a ratio of 1:10), using Potter – Elvehjem homogenizer with Teflon pestle.
Results. SICI with an interval of 1 and 3 days between ligation of both CCA led to neuronal damage in the parietal cortex and hippocampus of rats, which manifested itself in a reduction of the neuron size, deformation of the perikaryons, an increase in the number of shrunken neurons and shadow cells. The most pronounced changes were observed in the subgroup with one-day interval between ligations. These changes were similar to the changes in incomplete cerebral ischemia (ICI) (p=0.07), except for the absence of cells with pericellular edema in the hippocampus and a smaller number of those in the parietal cortex. ICI with seven-day interval between ССА ligations, on the contrary, was manifested by less pronounced histological changes, especially in the hippocampus.
Conclusion. Comparative analysis of mitochondrial respiration in brain homogenates revealed that the severity of brain damage in SSIC depended on the interval between blood flow arrest in both CCA. At the same time, the highest level of energy metabolism disorder was observed during CCA ligation with an interval of one day, which implied insufficient implementation of compensatory mechanisms.
Cite as
Bon LI, Maksimovich NYe, Dremza IK, Lychkovskaya MA, Burak IN. Changes in respiration of the mitochondrial fraction of brain homogenates in rats with stepwise incomplete cerebral ischemia. Saratov Medical Journal 2022; 3 (2): e0203.
CID
e0203

Introduction

Mitochondria play а crucial role in the life of every cell. Their most characteristic feature is the presence of numerous enzymes involved in oxidative phosphorylation and energy supply to the cell [1-5]. Besides, mitochondria are involved in storing and transmitting hereditary information, apoptosis and various metabolic processes [6-9].

The еnеrgy requirements of the brain, necessary for normal functional activity of neurons (approximately 1,046 J or 250 саlоries per minute) are provided at large (95%) via aerobic glycolysis [1, 7, 10-12]. Because the chief way of obtaining energy in the brain is aerobic breakdown of glucose, its need for oxygen, compared with other organs, is extremely high [13, 14].

Most of conducted studies were devoted to examining the pathogenesis of cerebral ischemia [1, 15-17], whereas insufficient attention was paid to the mechanisms of brain compensation.

When modeling severe forms of cerebral ischemia (total and one-stage incomplete), compensation mechanisms are absent due to the development of deep hypoxia [1, 16]. The study of the compensatory mechanisms is possible on the basis of evaluating changes of energy exchange in rats with SICI via alternate ligation of both CCA with different time intervals between the ligations.

Objective – to carry out a comparative analysis of mitochondrial respiration in brain homogenates of rats with simulated SICI with varying duration between ligations of both CCA.



Material and methods

The experiments were carried out on 24 male outbred white rats weighing 260±20 g in compliance with the Directive of the European Parliament and of the Council No. 2010/63/EU of 22 September, 2010 on the protection of animals used for scientific purposes. Protocol of the Ethics Committee at the Grodno State Medical University No.1 of 30 January, 2018.

Cerebral ischemia (СI) modeling was performed under conditions of intravenous thiopental anesthesia (40-50 mg/kg).

SICI was performed by sequential ligation of both CCA with an interval of 7 days (subgroup 1, n=6), 3 days (subgroup 2, n=6) or 1 day (subgroup 3, n=6) [4]. The sampling of brain material was carried out 1 hour after ligation of the second CCA in each subgroup.

The control group included sham-operated male rats of similar weights (n=6). To study mitochondrial respiration, the brain was removed in the cold (0-4 °C), dried with filter paper, weighed and homogenized in an isolation medium containing 0.32 M sucrose, 10 mM Tris-HCl, 1 mM EDTA, pH 7.4 (in the ratio 1:10) using a Potter – Elvehjem homogenizer with a Teflon pestle in accordance with a modified technique [18, 19].

Mitochondria were isolated by differential velocity centrifugation. The nuclear fraction was separated by centrifugation at 600 g for 10 min (4 °C). The resulting supernatant was centrifuged at 8,500 g for 10 min (4 °C), the mitochondrial pellet was washed twice in the isolation medium and resuspended until a protein concentration of 35-40 mg/mL in the isolation medium and stored in a short tube on ice. Protein concentration was determined by the Lowry protein assay [18].

To examine mitochondrial respiration, a concentrated suspension of mitochondria was introduced into a sealed polarographic cell (placed in a thermostat) with a volume of 3.0 mL, containing an incubation medium in an amount providing an ultimate protein concentration in the cell of 1 mg/mL. The incubation medium for registering mitochondrial respiration contained 0.17 M sucrose, 40 mM KCl, 10 mM Tris-HCl, 5 mM KH2PO4, 8 mM KHCO3, 0.1 mM EDTA, pH of 7.4.

The principle of polarographic cell operation was based on the registration of oxygen uptake by mitochondria using the built-in Clark electrode at a temperature of 25 °C (Figure).

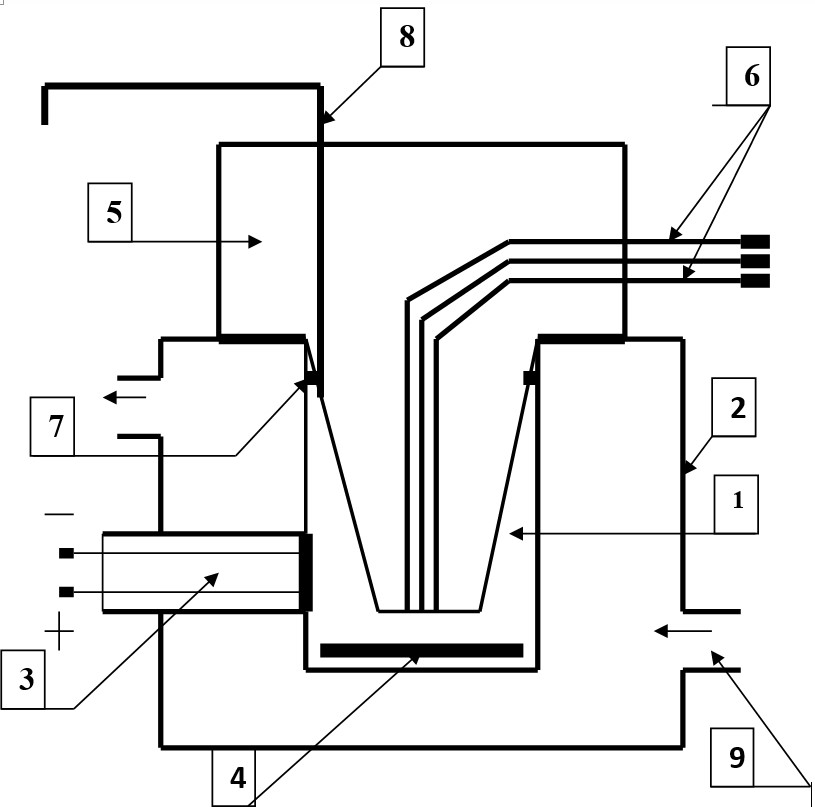

Figure. Polarographic cell for studying the respiratory activity of mitochondria:

1 – cell; 2 – thermostatic chamber; 3 – Clark electrode; 4 – magnetic stirrer; 5 – sealing plug; 6 – channels for dosed anaerobic introduction of substrates and ADP; 7 – sealing ring; 8 – channel for removing air and excess fluid; 9 – fitting for connection to an ultrathermostat



Registration of changes in the partial pressure of oxygen (pO2) in the mitochondrial suspension was conducted using an electronic recorder KSP-4.

The Clark electrode was calibrated by consecutively blowing air (pO2 of air) and gaseous nitrogen (pO2=0 mmHg) through the cell.

After registering the rate of basal (endogenous) respiration in the absence of a substrate (V1), respiratory substrates (2 mM malate/5 mM glutamate, or 5 mM succinate) were alternately administered into the mitochondrial suspension, and then ADP in an amount of 200 nmol/mL was introduced. On the basis of the obtained polarograms, the mitochondrial respiratory rates in different metabolic states and the coefficients characterizing the coupling of oxidation and phosphorylation processes were calculated.

The following parameters of mitochondrial respiration were recorded: basal respiration rate (V1), substrate-dependent respiration rate (V2), phosphorylation-coupled respiration rate after the addition of ADP (V3), and rate of respiration after completion of phosphorylation of the added ADP (V4). Also, the parameters characterizing the coupling of oxidation and phosphorylation processes in mitochondria were determined: acceptor control ratio (ACR=V3/V2), respiratory control ratio (RCR=V3/V4), and phosphorylation ratio (ADP/O).

Use of dissolved substrates of succinate and malate/glutamate complexes helped assessing the degree of functional activity of the electron transport chain (ETC) in mitochondria as a whole, in particular, of the ETC complexes I and II.

To prevent systematic measurement errors, brain samples from the compared control and experimental groups of animals were studied under the same conditions.

As a result, quantitative continuous data were obtained. Since the experiment used small samples with non-normal distributions of individual values, the analysis was carried out via nonparametric statistics using the Statistica 10.0 licensed computer program for Windows (StatSoft Inc., USA). Our data are presented as Me (LQ; UQ), where Me stands for the median, and LQ and UQ are values of the lower and upper quartiles, respectively. Intergroup differences were considered significant at p<0.05 (Kruskal – Wallis test with Bonferroni’s correction).



Results

SICI with an interval of 1 and 3 days between ligations of both CCA led to the damage of neurons in parietal cortex and hippocampus of rats, which manifested itself in their size reduction, deformation of perikaryons, an increase in the number of shrunken neurons and shadow cells. The most pronounced changes were observed in the subgroup with one-day interval between ligations. These changes were similar to the changes in incomplete cerebral ischemia (ICI) (p=0.07), except for the absence of cells with pericellular edema in the hippocampus and their smaller number in the parietal cortex. ICI with a 7-day interval between ССА ligations, on the contrary, was manifested by less pronounced histological changes, especially in the hippocampus.

In the course of studying the respiration in the mitochondrial fraction of SICI rat brain homogenates, the following data were obtained. In the subgroup 1 of ICI rats, we observed an increase in V2 by 46% (39; 56) in the presence of malate/glutamate, compared with the control group (p<0.05). Similar comparison yielded 56% (51; 63) increase of RCR (p=0.02, implying the activation of proton transport through the АTР synthase complex. Other indicators did not change (p=0.07), as seen in Table.

Table. Indicators of respiration in the mitochondrial fraction of brain homogenates in rats with stepwise incomplete cerebral ischemia when using malate/glutamate and succinate substrates, Me (LQ; UQ)





Groups

V1

(ng O/min × mg

protein)

V2

(ng O/min × mg

protein)

V3

(ng O/min × mg

protein)

V4

(ng O/min × mg

protein)



ACR

(V3/V2)





RCR

(V3/V4)



Phosphorylation

 ratio (ADP/O)

Malate/glutamate substrate

Control

18 (14; 19)

27 (26; 27)

51 (48; 56)

31 (27; 34)

2.0 (1.8; 3.0)

1.6 (1.6; 1.7)

2.0 (1.9; 2.1)

SICI

sg 1

12 (3; 18)

51* (35; 63)

46 (38; 53)

41 (26; 51)

2.9 (2.2; 3.5)

3.5* (3.0; 4.3)

2.9  (2.1; 3.0)

sg 2

27 (12; 34)

21+ (19; 22)

42 (26; 56)

16*+ (13; 19)

2.1 (1.9; 2.4)

2.1 (1.3; 4.1)

1.5+ (1.3; 2.5)

sg 3

12 (9; 18)

15*+ (7; 22)

26*+ (17; 31)

9*+ (8; 13)

1.8 (1.4; 2.2)

1.7 (1.3; 3.5)

1.4*+ (1.3; 1.6)

Succinate substrate

Control

17 (15; 17)

34 (28; 36)

66 (65; 68)

38 (36; 40)

2.0 (1.9; 2.3)

1.8 (1.7; 1.9)

1.9 (1.8; 1.9)

SICI

sg 1

31* (18; 35)

40 (31; 45)

66 (42; 68)

69* (47; 84)

2.8 (2.3; 3.1)

3.6* (2.4; 3.8)

2.1 (1.8; 3.4)

sg 2

14 (12; 24)

13*+ (10; 19)

33* (24; 44)

26*+ (19; 27)

2.8 (2.0; 3.4)

1.5+ (1.3; 1.9)

1.7 (1.2; 1.9)

sg 3

12+ (9; 15)

16*+ (12; 17)

26*+ (23; 27)

13*+ (9; 20)

1.6+ (1.5; 2.0)

1.0*+ (1.0; 1.3)

1.2*(1.1; 1.2)

V1 – basal respiration rate; V2 – substrate-dependent respiration rate; V3 – phosphorylation-coupled respiration rate (after the addition of ADP); V4 – rate of respiration after completion of phosphorylation of the added ADP; ACR – acceptor control ratio; RCR – respiratory control ratio; sg – subgroup; * – p<0.05 compared with the control group; + – p<0.05 compared with subgroup 1 of SICI rats



Discussion

In the presence of succinate in the subgroup 1 of SIСI rats with a 7-day interval between ligations of both CCA, there was an increase in V1, V4, and RCR by 45% (39; 52), p<0.05; 47% (37; 55), p<0.05; and 48% (41; 56), p<0.05, respectively.

There were no differences in V1, V2, V3, V4, RCR, ACR and phosphorylation ratio when using different substrates (p>0.05), which indicated equivalent consequences of changes in both complexes (I and II) of electron transport.

Compared with the control group, in the subgroup 2 of SICI rats with a 3-day interval between ligations, in the presence of the malate/glutamate substrate, a reduction in V4 by 49% (32; 54) was detected, p<0.05. The values of indicators V2 and V4 were down by 58% (42; 69), p<0.05; and the phosphorylation ratio was smaller by 50% (41; 65), p<0.05. In the presence of succinate, there was a decrease in the V2, V3 and V4 rates by 61% (51; 69), p<0.05; 48% (40; 52), p<0.05; and 30% (28; 39), p<0.05, correspondingly. Compared with the subgroup 1 of SICI rats, in the subgroup 2, we observed a decrease in V2, V4 and RCR by 67% (52; 74), p<0.05; 58% (49; 68), p<0.05; and 60% (52; 74), p<0.05, respectively.

In the subgroup 3 of SICI rats with a minimum interval between ligations of both CCA (one day), against the background of the control group, in the presence of succinate, we detected a reduction in V2, V3 and V4 rates by 52% (43; 65), p<0.05; 61% (52; 69), p<0.05; and 65% (58; 71), p<0.05, correspondingly. The RCR value declined by 42% (37; 49), p<0.05, and the phosphorylation ratio went down by 37% (28; 45), p<0.05.

A reduction in the values of V2, V3 and V4 indices, and in the RCR in the subgroup 3 of SICI rates was indicative of the damage to electron carriers in mitochondria and enzymes of the Krebs cycle, which, in turn, led to a decrease in energy production, as evidenced by a low phosphorylation ratio.

Compared with the indicator values in the subgroup 1 with the interval between CCA ligations of 7 days, in the subgroup 3 with the interval between the CCA ligations of 1 day, in the presence of the malate/glutamate substrate, the V2, V3 and V4 indicators decreased by 46% (34; 52), p<0.05, 52% (41; 64), p<0.05, and 72% (61; 82), p<0.05, respectively. There was also a reduction in the phosphorylation ratio by 30% (19; 45), p<0.05. Against the background of subgroup 1 of SICI rats, V2, V3, and V4 rates were smaller by 71% (63; 84), p<0.05; 43% (38; 51), p<0.05; and 79% (67; 86), p<0.05, respectively; whereas the phosphorylation ratio was smaller by 50% (41; 65), p<0.05. In the presence of succinate, we observed a decline in the V1, V2, and V3 rates by 57% (49; 68), p<0.05; along with a reduction in V4 by 80% (71; 95), p<0.05, and 66% (52; 74), p<0.05. The ACR, RCR and phosphorylation ratio declined by 43% (39; 48), p<0.05; 72% (62; 83), p<0.05; and 43% (29; 54), p<0.05.

Compared with the subgroup 2, in the subgroup 3 of the SICI rats, in the presence of both substrates, the respiration indices in the mitochondrial fraction of brain homogenates did not change significantly (p>0.05), which implied the equivalence of disorders in electron transport complexes I and II in subgroups 2 and 3 of SICI rats.

Among the leading pathogenetic mechanisms of ischemic brain damage, we should mention a dysfunction of complex I (NADH-dehydrogenase complex) in conditions of oxygen deficiency, a decrease in NADH oxidation and inhibition of the Krebs cycle.

With cerebral ischemia, damage to the inner mitochondrial membrane occurs due to the activation of free radical oxidation processes. Damage to the inner mitochondrial membrane, in turn, leads to an increase in its permeability and a decrease in the level of the proton gradient caused by the proton transport along the concentration gradient through the formed nonspecific pores into the mitochondrial matrix. As a result, the efficacy of ATP synthesis declines, and more substrates and oxygen are required to maintain the mitochondrial membrane potential under these conditions.

As shown earlier, with ligations of both ССА 3 days apart, the histological changes were not as pronounced as in the subgroup 3, and no cells with pericellular edema were observed. When blood flow in both CCA was stopped 7 days apart, the pathological changes were even less noticeable: the ratio of neurons sensu the chromatophilia degree of their cytoplasm and the size of the neuronal perikaryons differed insignificantly from their values  in the control group.

In the same animals, the respiratory parameters in the mitochondrial fraction of brain homogenates have normalized, and some even exceeded the control values, which could be explained by the onset of various compensatory processes: an increase in the synthesis of cytochromes, Krebs cycle enzymes. Mitochondria were formed, their cristae were restored, and the efficacies of the processes of oxygen utilization, substrate oxidation, and their delivery to the mitochondria were increasing. Due to morphofunctional changes, restructuring of mitochondrial enzyme complexes, and activation of oxidation and phosphorylation enzymes, an increase in the degree of coupling of the oxidation and phosphorylation processes in adenine nucleotides (ADP, AMP, creatine) was observed. Other important observed processes included an activation of the glycolytic oxidation pathway, an increase in the synthesis of nucleic acids and proteins, a cost-effective use of oxygen and metabolic substrates in biological oxidation reactions and catabolic processes, an increase in the efficacy of anaerobic ATP resynthesis reactions and the activity of anabolic processes.



Conclusion

Hence, our study demonstrated the dependence of brain damage severity in SICI on the interval between blood flow arrest in both CCA. The activation of compensatory mechanisms occurred during the seven-day interval between ССА ligations. These compensatory mechanisms prevented the development of major energy exchange disorders, leading to the less pronounced morphological disorders and a smaller degree of neurologic deficit.

However, the maximum energy exchange disorder was observed in the course of CCA ligation with one-day interval, which indicated the insufficiency of compensatory mechanisms implementation.



Conflict of interest. The authors declare an absence of apparent and potential conflicts of interest related to the publication of this article.



Funding sources. State scientific program, “Examining the Processes of Brain Damage and Adaptation During its Ischemia and Use of Correction”.

References
  1. Baertling F. NDUFA9 point mutations cause a variable mitochondrial complex I assembly defect. Clinical Genet 2018; (93): 111-8. https://doi.org/10.1111/cge.13089
  2. Hackenbrock CR. Lateral diffusion and electron transport in the mitochondrial inner membrane. Trends Biochemistry 1981; (15): 151-4.
  3. Hoffmann C. The effect of differentiation and TGFß on mitochondrial respiration and mitochondrial enzyme abundance in cultured primary human skeletal muscle cells. Science Report 2018; (8): 737-40. https://doi.org/10.1038/s41598-017-18658-3
  4. Holvoet P. Low cytochrome oxidase 1 links mitochondrial dysfunction to atherosclerosis in mice and pigs. PLoS One 2017; (12): 307-12. https://10.1371/journal.pone.0170307
  5. Klinyerberg M. Principles of carrier catalysis elucidated by comparing two similar membrane translocators from mitochondria, the ADP/ATP carrier and the uncoupling protein. New York Academic Science 1985; (456); 279-88. https://10.1111/j.1749-6632.1985.tb14877.x
  6. Bon LI, Maksimovich NYe, Zimatkin SM. Morphology of rat brain neurons in incomplete ischemia and introduction of L-NAME and omega-3 polyunsaturated fatty acids. Journal of Medical Science 2020; (3): 1-8.  https://doi.org/10.20883/medical.e423
  7. Boumans H, Grivell LA, Berden JA. The respiratory chain in yeast behaves as a single functional unit. J Biol Chem 1998; (273): 4872-7. https://10.1074/jbc.273.9.4872
  8. Chalmers GR, Roy RR, Edgerton VR. Adaptability of the oxidative capacity of motoneurons. Brain Res 1992; 570 (1-2): 1-10. https://10.1016/0006-8993(92)90556-o
  9. Maksimovich NYe, Bon LI, Dremza IK. Structural and functional features of mitochondria and methods of their experimental studying. Medicus 2019; (5): 8-18.
  10. Brand MD, Murphy MP. Control of el ectron flux through the respiratory chain in mitochondria and cells. Biological Review 1987; (62): 141-93. https://10.1111/j.1469-185x.1987.tb01265.x
  11. Casey RP. Membrane reconstruction of the energy-conserving enzymes of oxidative phosphorylation. Biochemistry Acta 1984; (768): 319–347. https://10.1016/0304-4173(84)90021-1
  12. Prince RC. The proton pump of cytochrome oxidase. Trends Biochemistry Science 1988; (13): 159-60.
  13. Leonard K, Haiker H, Weiss H. Three-dimensional structure of NADH: Ubiquinone reductase (complex I) from Neurospora mitochondria determined by electron microscopy of membrane crystals. Моlecular Biology 1987; (194): 277-86. https://10.1016/0022-2836(87)90375-5
  14. MacFarlane DE. The effects of ATP on platelets. Evidence against the central role of released ADP in primary aggregation. Blood 1975; (46): 309. https://pubmed.ncbi.nlm.nih.gov/167888/
  15. Bon LI, Maksimovich NYe. Evaluation of neurologic deficit in rats with cerebral ischemia following the administration of omega polyunsaturated fatty acids. Journal of Medical Science 2021; 90 (3): 137-43.  https://doi.org/10.20883/medical.e529
  16. Chan PH. Mitochondria and neuronal death/survival signaling pathways in cerebral ischemia. Neurochem Res 2004; (29): 1943-9.  https://10.1007/s11064-004-6869-x
  17. Clemens JA. Cerebral ischemia: Gene activation, neuronal injury, and the protective role of antioxidants. Free Radic Biol Med 2000; (28): 1526-31.  https://10.1016/s0891-5849(00)00258-6
  18. Bon LI, Maksimovich NYe. Histological disorders of neurons in phylogenetically different parts of the cerebral cortex in focal, incomplete, stepwise incomplete, and total cerebral ischemia. Journal of Medical Science 2021; 90 (1): 108-15.  https://doi.org/10.20883/medical.e493
  19. LaManna JС, Vendel LM, Farrell RM. Brain adaptation to chronic hypobaric hypoxia in rats. J Appl Physiol 1992; (72): 2238-43. https://10.1152/jappl.1992.72.6.2238
About the Authors

Elizaveta I.  Bon – PhD, Assistant Professor of the Department of Pathological Physiology, Grodno State Medical University, Grodno, Belarus;

Nataliya Ye. Maksimovich – DSc, Professor, Head of the Department of Pathological Physiology, Grodno State Medical University, Grodno, Belarus;

Iosif K. Dremza – PhD, Assistant Professor of the Department of Pathological Physiology, Grodno State Medical University, Grodno, Belarus;

Mariya A. Lychkovskaya – Undergraduate Student, School of Pediatrics,  Grodno State Medical University, Grodno, Belarus;

Iya N. Burak – Undergraduate Student, School of General Medicine, Grodno State Medical University, Grodno, Belarus.



Received 19 November 2021 , Accepted 27 May 2022



Original Text © Bon LI, Maksimovich NYe, Dremza IK, Lychkovskaya MA, Burak IN, 2022, published in Saratov Journal of Medical Scientific Research 2022; 18 (1): 78–82.

© 2022, Bon L.I., Maksimovich N.Ye., Dremza I.K., Lychkovskaya M.A., Burak I.N.

© 2022, Saratov Medical Journal



Correspondence to Elizaveta I. Bon. Tel.: +80 (336) 8672553, E-mail: asphodela@list.ru.

DOI
10.15275/sarmj.2022.0201
